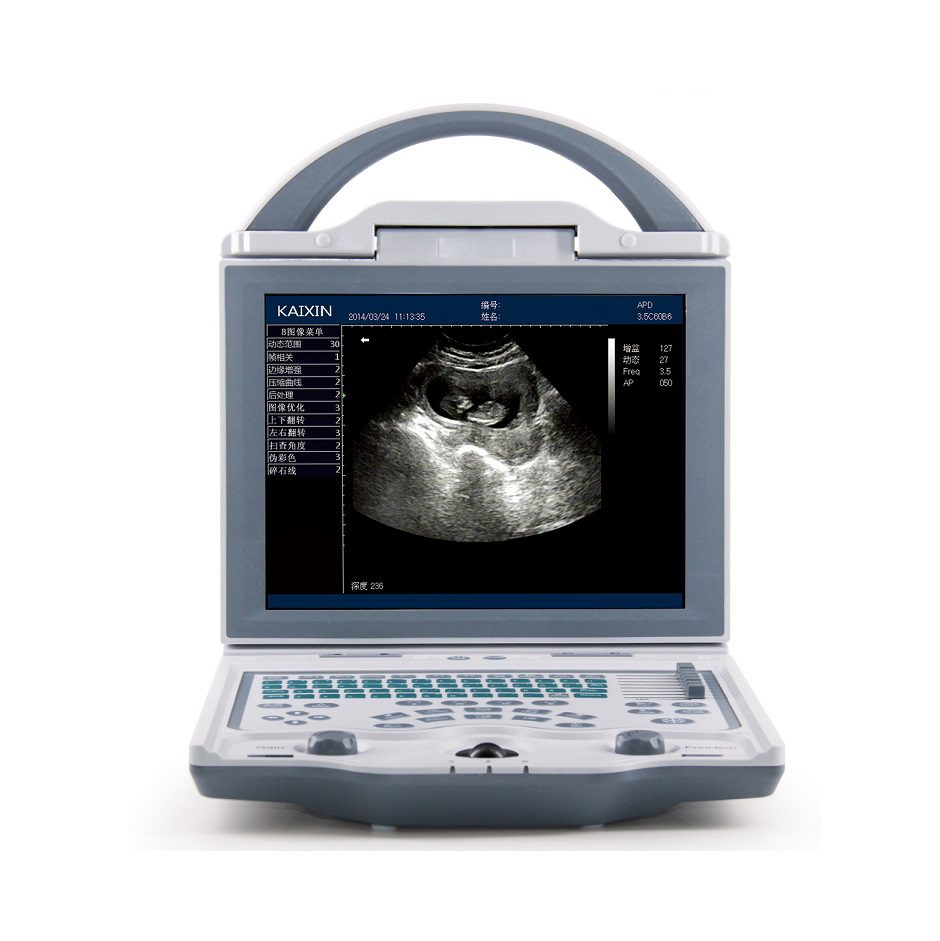

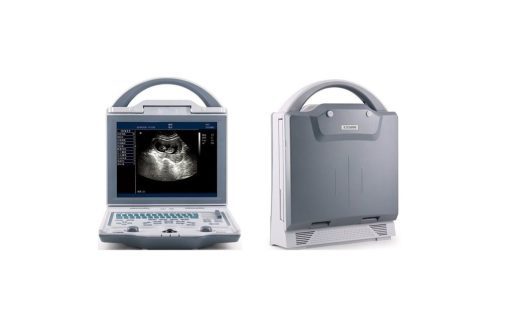

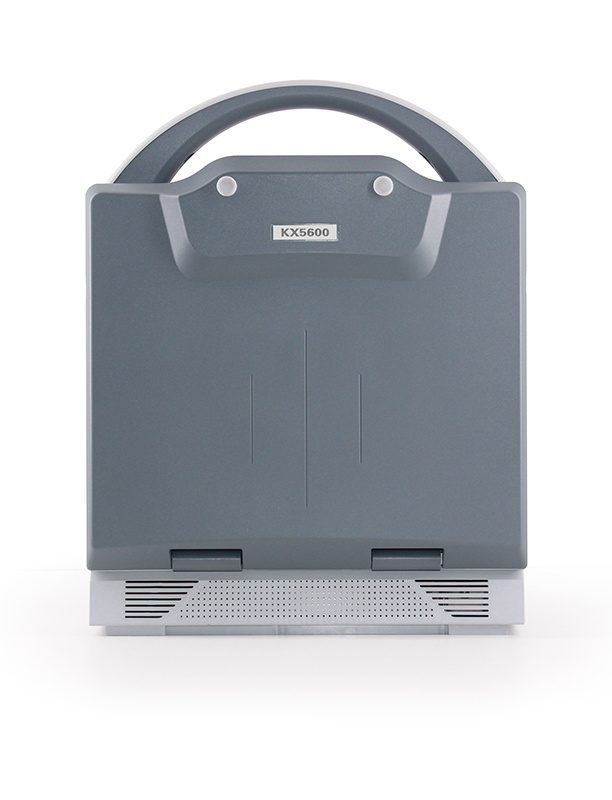

(NewPortable LED Model)Tech
- 10.4’ high resolution color LED backlight display, with high contrast and wide viewing angle；
- Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable.
- Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese；

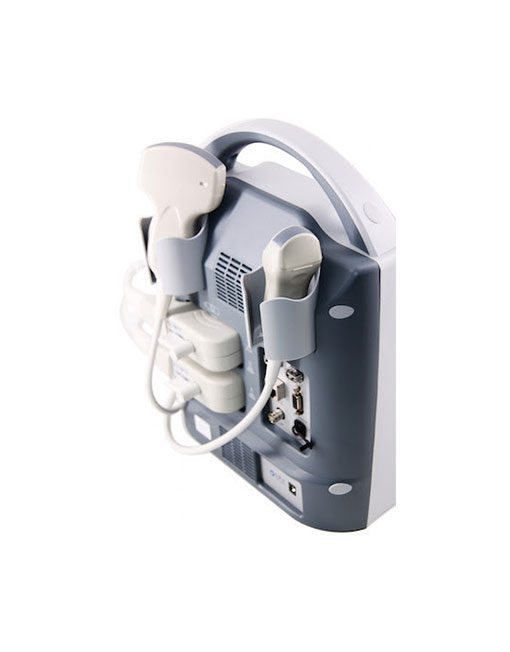

- Two probe sockets, auto-identify different optional probe；
- Body marks:total 64 kinds body marks indicating probe position；

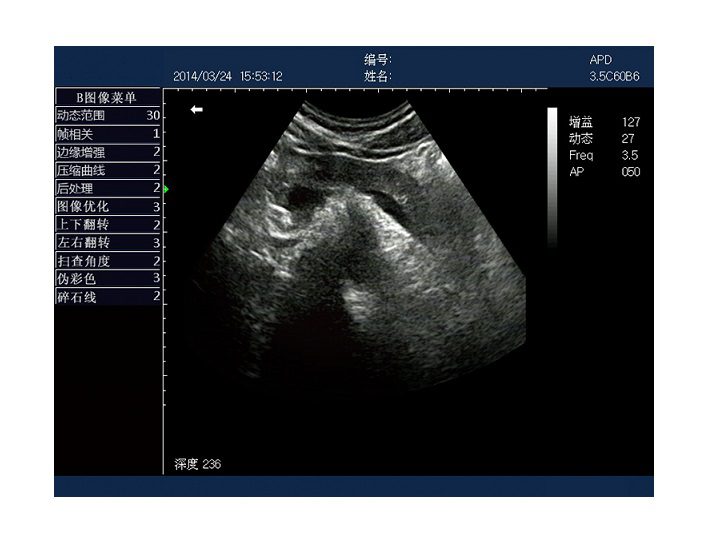

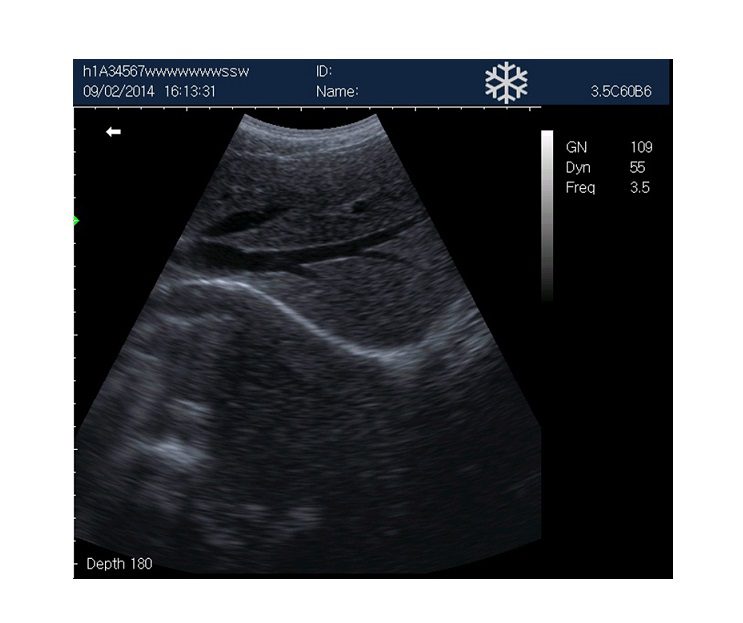

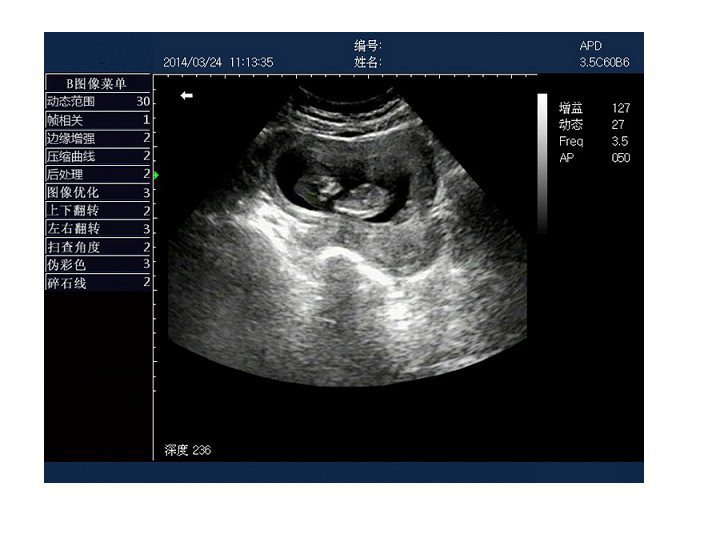

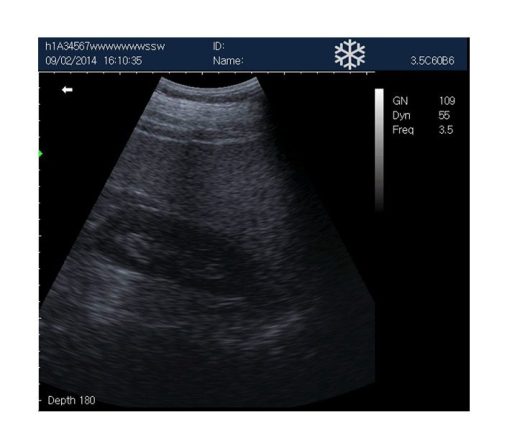

- Display mode:B,2B,4B ,B/M,M ；
- Adjustable depth: 10 grades, max depth to 236mm；
- Gray scale:256；
- 8 steps intelligent TGC；
- Frame frequency: 30 frames /second
- 8 kinds pseudo colors；
- Image storage: 4G hard disk to permanently store about 5000 frames images；without loss when power off.
- Cine loop:256 frames；
- Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position)；
- the gravel software package with real-time position line measurement
- Normal measurement: distance,perimeter, area, volume, angle, length and area stenosis ratio measurement.
- Cardio measurement:Depth, slope, heart rate, cycle；
- Gynecology measurement and analysis: gynecology general measurement and gynecology report.
- OB measurement including: 15 kind of obstetric software, several GA measurement, amniotic fluid index ,fetal growth curve and OB report.
- Urology measurement and analysis: residual urine volume, prostate volume, and urology report .
- One-key store: concise and practical;
- One-key review:fast, practical image review function;
- One-key Print；
- One-key Transfer the current frozen image to net workstation to complete its image text report and print directly;
- Concise and practical, easy operation. The system includes network workstation to complete data & report management (You don’t need to invest more to buy extra ultrasound working station)；
- Unique One-key-light keyboard function for black room use;
- Display brightness adjustable；
- Dual TV output: PAL/NTSC, can connect video printer when necessary；
- Power supply:100-240V～ 1.2-0.6A frequency:50-60Hz；
- Power supply adaptor output:DC12.8V 3.0A；

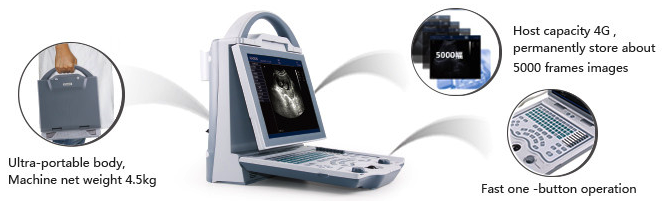

- Main unit weight:4.5kg(without accessories)；
- Main unit dimension:256×150×326mm(L×W×H)；
Main basic configuration:
- Main unit 1pc；
- 3.5MHz convex probe 1pc；
- Power supply adaptor 1pc；
- Reticle 1pc;
- Two probe sockets
- Optional probes
6.5MHz multi-frequency trans-vaginal probe(through vagina)
6.5MHz micro-convex probe for small animals
7.5MHz multi-frequency linear probe
7.5MHz multi-frequency cavity probe (through anus)
- Battery charger
- Li-battery: HYLB-1614 11.1V-4400mAh 48.84Wh
- Video printer(UP-897MD)
- Ethernet Switch
